To ensure your Nucu Pad is properly set up and ready for use, follow these detailed instructions. This guide covers preparing the sleeping place, charging the Controller, and installing the Controller mount.
1. Preparing the Sleeping Place

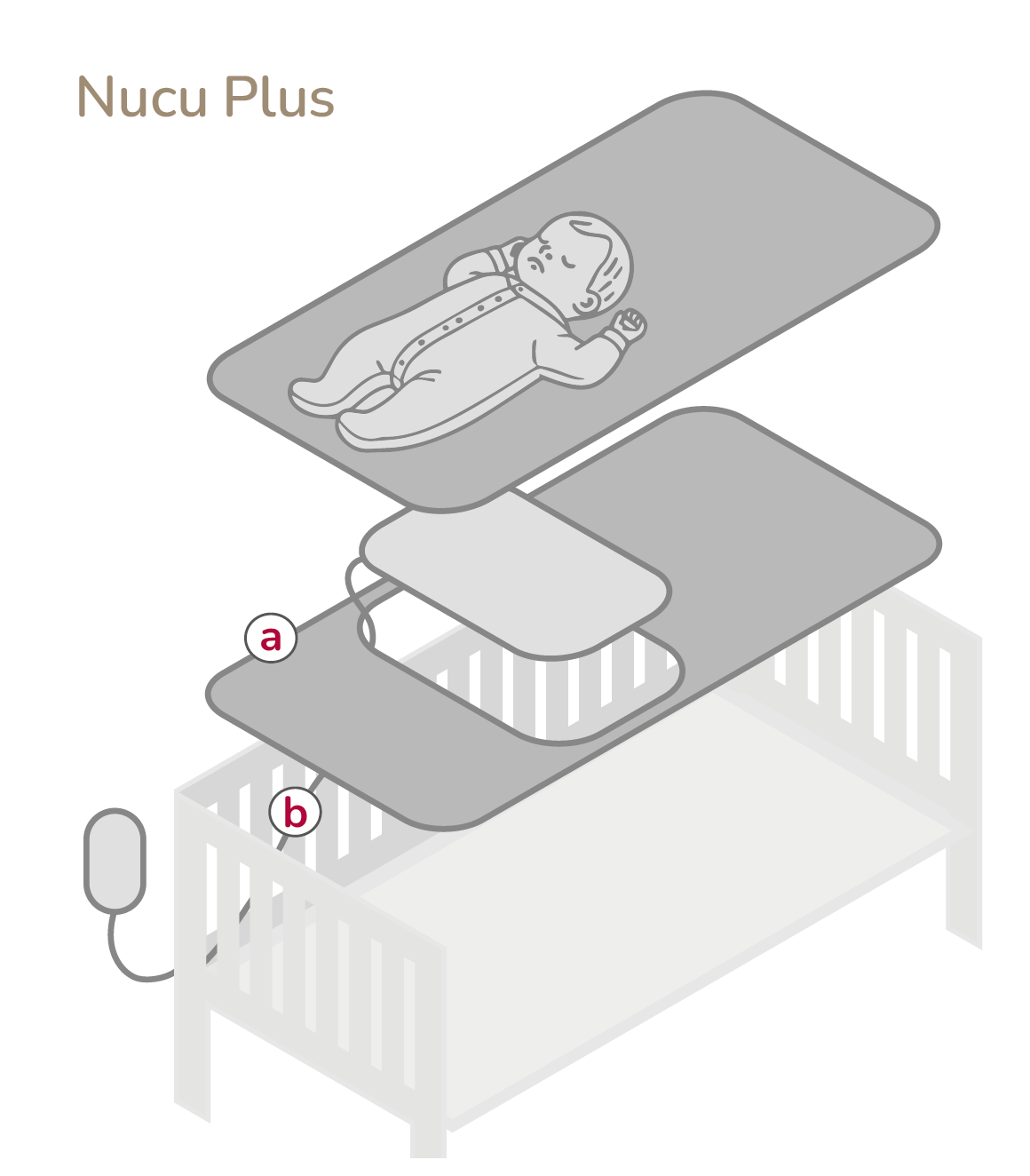

1. Insert the frame
- Start by inserting the included frame (a) into the bottom of the baby’s sleeping place.
2. Fit the Nucu Pad
- Insert and securely fit the Nucu Pad into the frame’s pad slot.
- Carefully route the cable through the frame (b) so that the baby cannot access it.
3. Add the mattress:
- Cover the included mattress with the provided sheet.
- Place the mattress on top of the frame with the Nucu Pad, ensuring the surface remains flat and even.
2. Installing the Controller mount
1. Attach the magnetic holder
- Take the included magnetic holder (c) and wrap the attached strips around a surface (d), such as the crib frame, where the baby cannot accidentally reach it when the Controller is connected.
2. Secure the holder
- Once the magnetic holder is in place, gently shake it to ensure it is securely attached and won’t fall off.
3. Test the Controller fit:
- Test that the Controller snaps onto the holder as intended. The connection should be firm and stable.
4. Connect the magnetic cable:
- Remove the Controller from the holder.
- Connect the white magnetic cable (e) to the back of the Controller and ensure it snaps into place securely.
3. Charging the Controller
1. Disconnect the cable
- Gently detach the cable (e) from the Controller to prepare it for charging.
2. Connect the USB-C Cable:

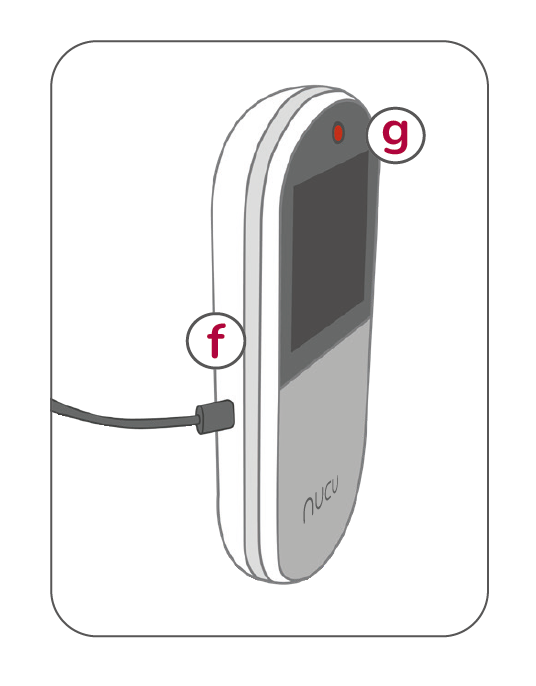

- Locate the USB-C port on the left side of the Controller (f).
- Insert the included USB-C cable into this port, and then connect the USB-A end to a charger (not included).
3. Charging Indicator:
- The power button on the Controller should turn red (g), indicating that the Controller is charging.
- Do not use the Controller while it is charging.
4. Initial Charging Time:
- Allow the Controller to charge for at least 3 hours before using it for the first time.
By following these steps, your Nucu Pad will be properly set up, and the Controller will be ready to use. If you encounter any issues during setup, please refer to the troubleshooting section or contact customer support for assistance.
